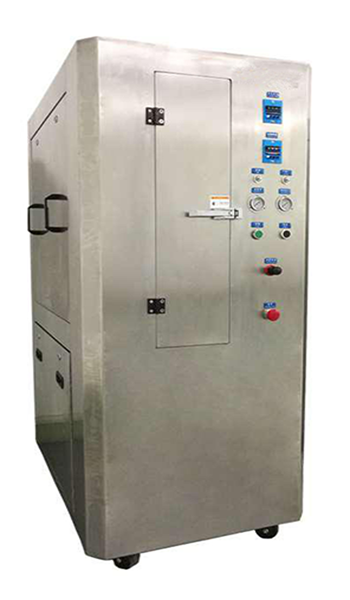

YJ-120C气动网板清洗系统

                  设备介绍

    针对于印刷、电子行业丝网、SMT钢网、铜网、微孔网以及晶圆盘等各类网版的清洗；

该设备完全采用压缩空气为能源,不用电,不存在任何火灾隐患.

采用人性化设计,一键式操作,轻松完成清洗.干燥工作；利用气压全自动运行的高性能清洗设备；

清洗液循环使用,损耗低...

or the printing, electronic industry screen, SMT steel mesh, copper mesh,

 microporous mesh and crystal disk and other types of screen cleaning;

The equipment completely USES compressed air as energy, does not use electricity,

 does not exist any fire hazard, using humanized design, one-key operation,

easy to complete the cleaning, drying; High performance cleaning equipment

with automatic air pressure operation; Cleaning fluid circulation, low loss...

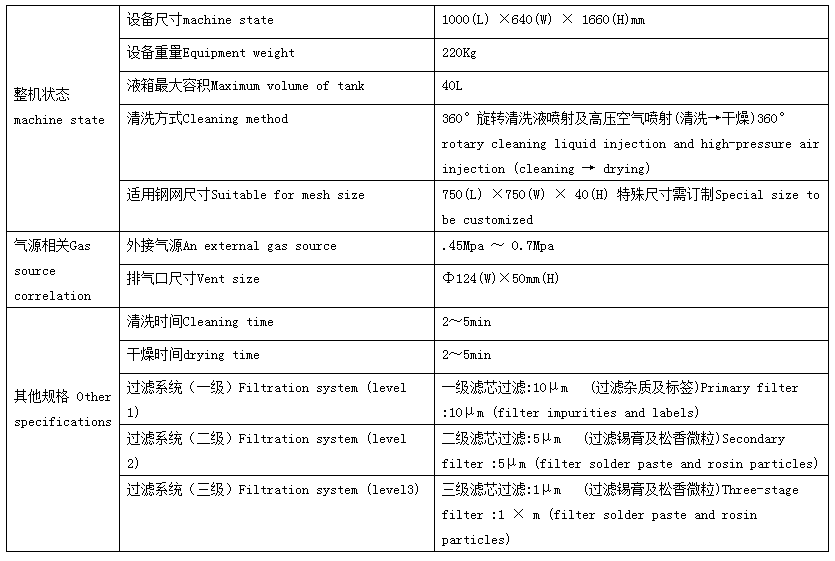

设备参数

产品优势

●全不锈钢机体：美观、耐磨损 、耐腐蚀，符合环保要求和标准；

●全气动运行，不用电，不存在火灾等安全隐患；

●侧壁进气吹干设计；

●人性化设计：一键式操作及自动加排液功能,操作十分简便;

●可更换的模块化控制器及快插式设计，维护保养也很简单方便;

●两级过滤系统、低排风口及S型排风管设计：溶剂循环使用，耗液量低;

●高密度等压双侧旋转清洗喷头，清洁力强，不破坏钢网张力.

●系统化整合全球优质控制器件，确保品质优良、性能稳定、使用寿命长;

● all stainless steel body: beautiful, wear resistance, corrosion resistance, in line with environmental requirements and standards;

● full pneumatic operation, no electricity, no fire and other safety hazards;

● side wall air intake blow-dry design;

● humanized design: one-key operation and automatic drainage function, the operation is very simple;

● replaceable modular controller and quick plug design, maintenance is also very simple and convenient;

● two-stage filtration system, low exhaust outlet and s-type exhaust duct design: solvent recycling, low liquid consumption;

● high density constant pressure double side rotary cleaning nozzle, strong cleaning force, do not destroy the steel mesh tension.

Systematic integration of global quality control devices to ensure good quality, stable performance, long service life

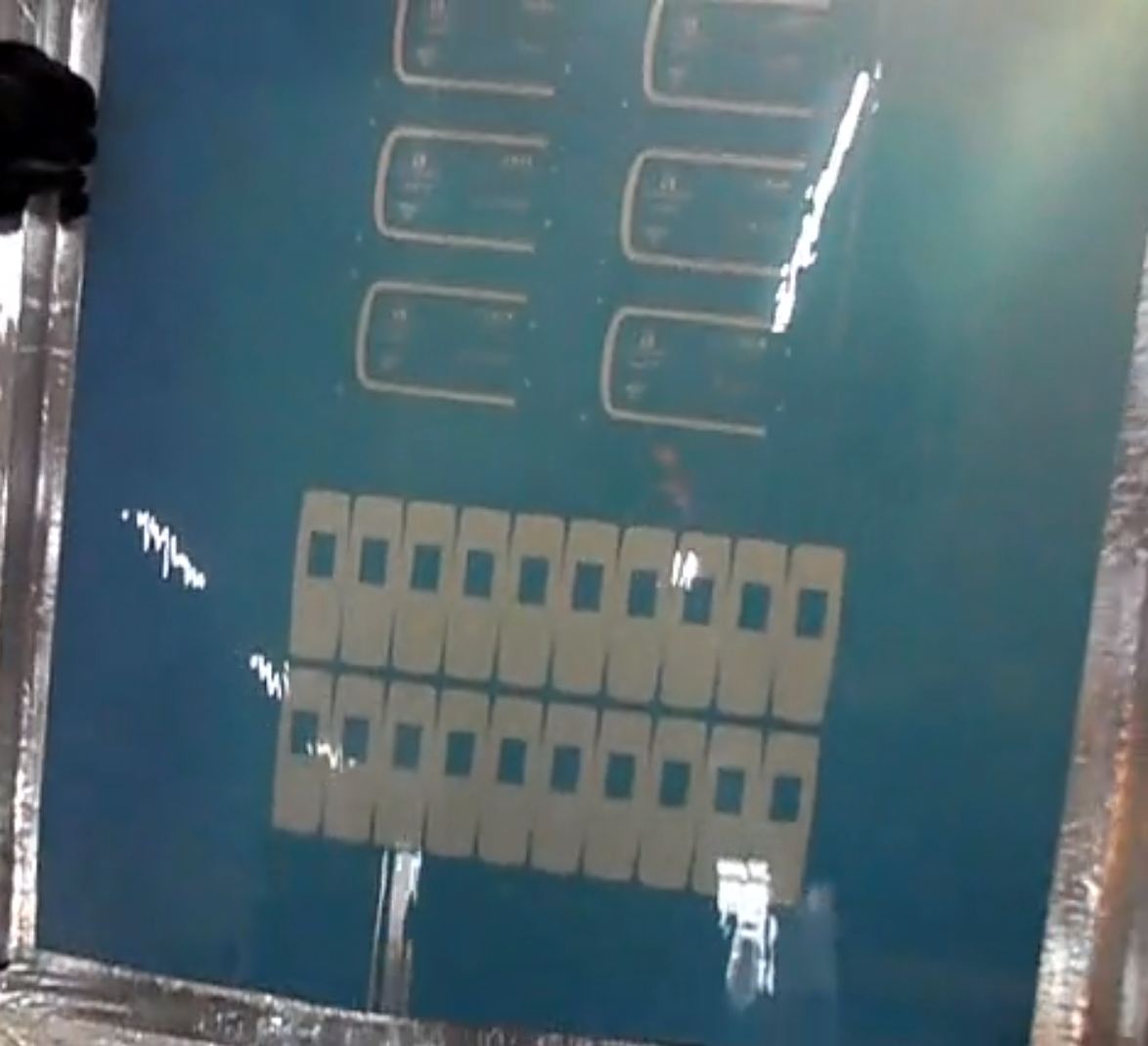

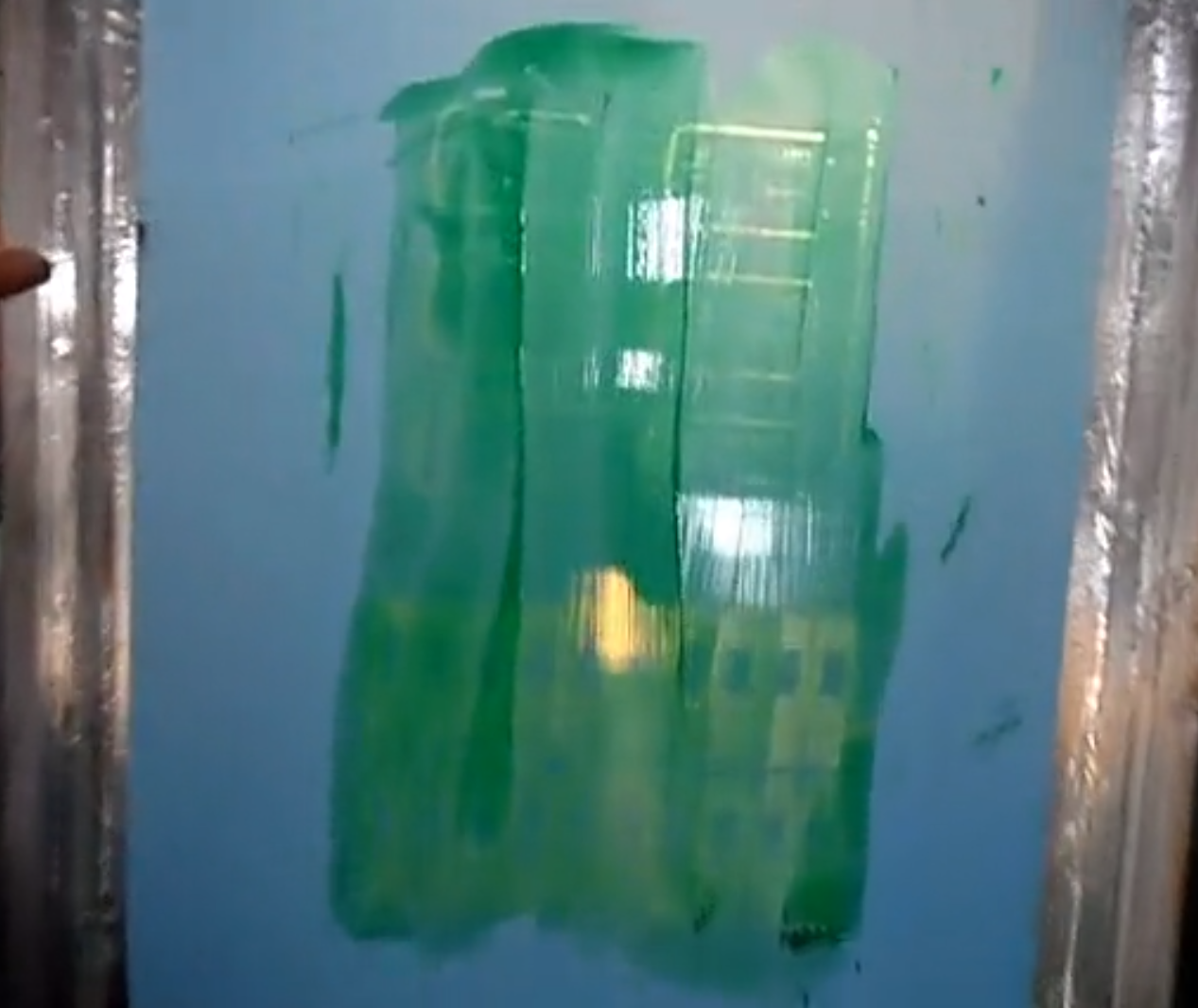

清洗前（Before）                         清洗后（after）
